MUGEN Extension Table

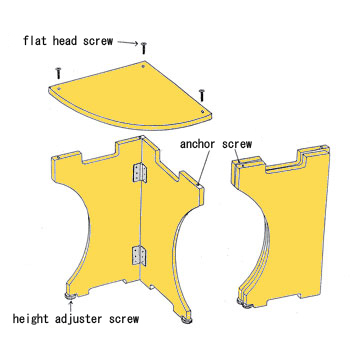

◆ anchor screw type:

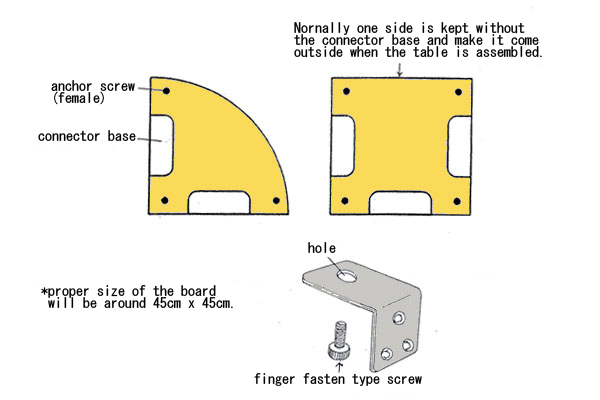

anchor screws(female) fixed on the back of the table board
assembling can be done without tools:
 |
Points： (1)The table boards should be cut accurate. (2)The connector bases should be fixed accurate. (3)The leg frame should be made to come flush to the edges of the table board. (4)The recess on the leg frame, where the connector base comes in when assembled, should be made big enough for the fingers to lock or unlock the connector. |

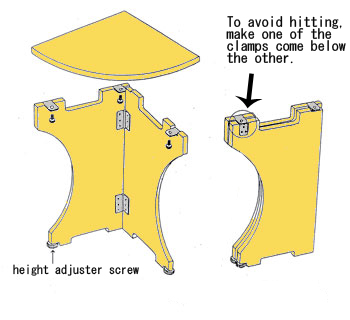

◆ through hole type:

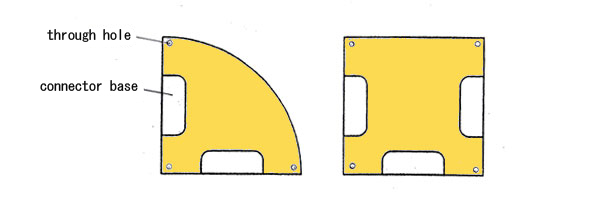

make through holes on the corners of the board
 |
Points： (1)The table boards should be cut accurate. (2)The connector bases should be fixed accurate. (3)The leg frame should be made to come as near to the edges of the table board as possible with minimam distance aecured for the through holes on the table board. (4)The recess on the leg frame, where the connector base comes in when assembled, should be made big enough for the fingers to lock or unlock the connector. |

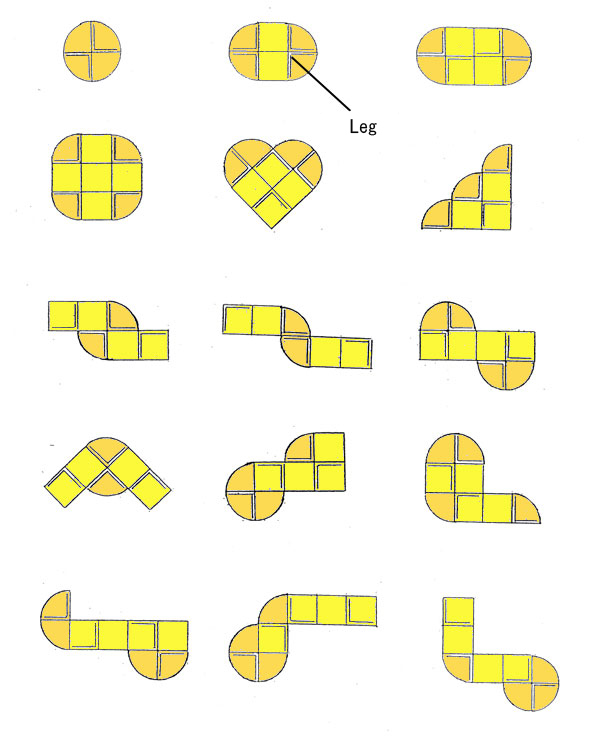

◆ Followings are the illustrations of the tables you can make, using the above folding legs together with the square and 1/4 round table boards:
